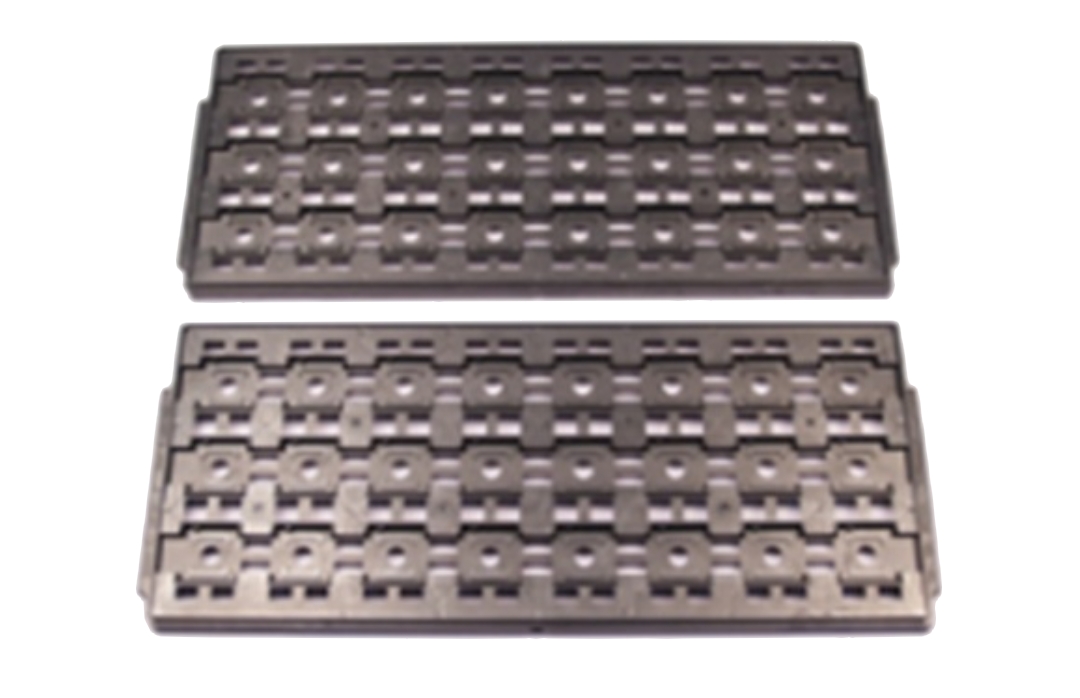

IC tray
Description
特色: 開發階段成本低、兩週內完成模具
Lower Initial Investment Budget
Starting at about US$ 8,000.00 -, including molds and 1,000 trays (standard materials).
產品規範
外部尺寸： 322.6 x 135.9 x 7.62 mm
公差： 外部尺寸 ±0.25 mm；功能區 ±0.13 mm (精確度同正常產品)
|
Type |
Q-300 |
Q-253 |
Q-200 |
Q-160 |
Q-96 |
Q-24 |
Q-10 |
|
Matrix |
12x25 |
11x23 |
10x20 |
8x20 |
6x16 |
3x8 |
2x5 |
|

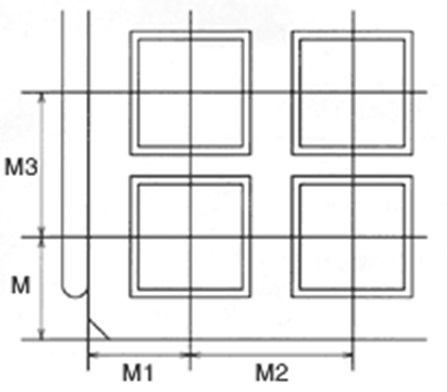

M |
8.825 |
9.7 |
13.95 |
13 |
18.3 |
29.95 |
35.85 |
|
M1 |
9.9 |
10.65 |
15 |
13.1 |
17.25 |
24.5 |
34.5 |
|
M2 |
12.3 |
13.35 |
15 |
15.2 |
18.7 |
38 |
61.5 |
|
M3 |
10.75 |
11.65 |
12 |
15.7 |
19.86 |
38 |
64.2 |
